Ergonomic and Comfortable

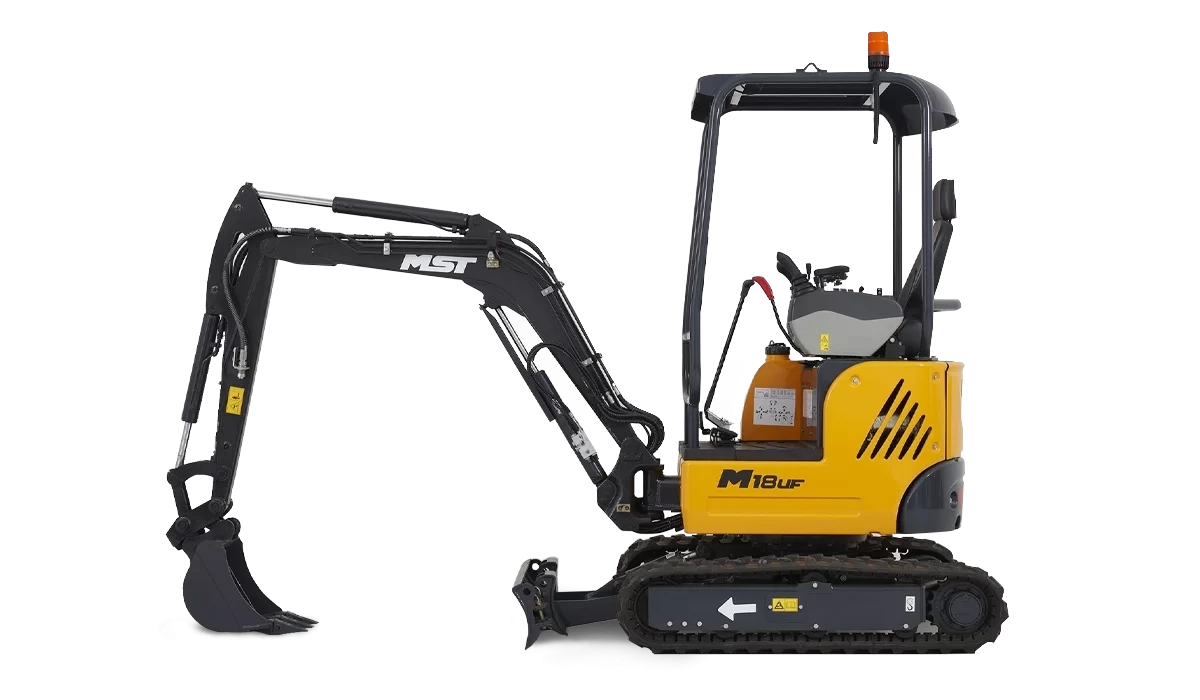

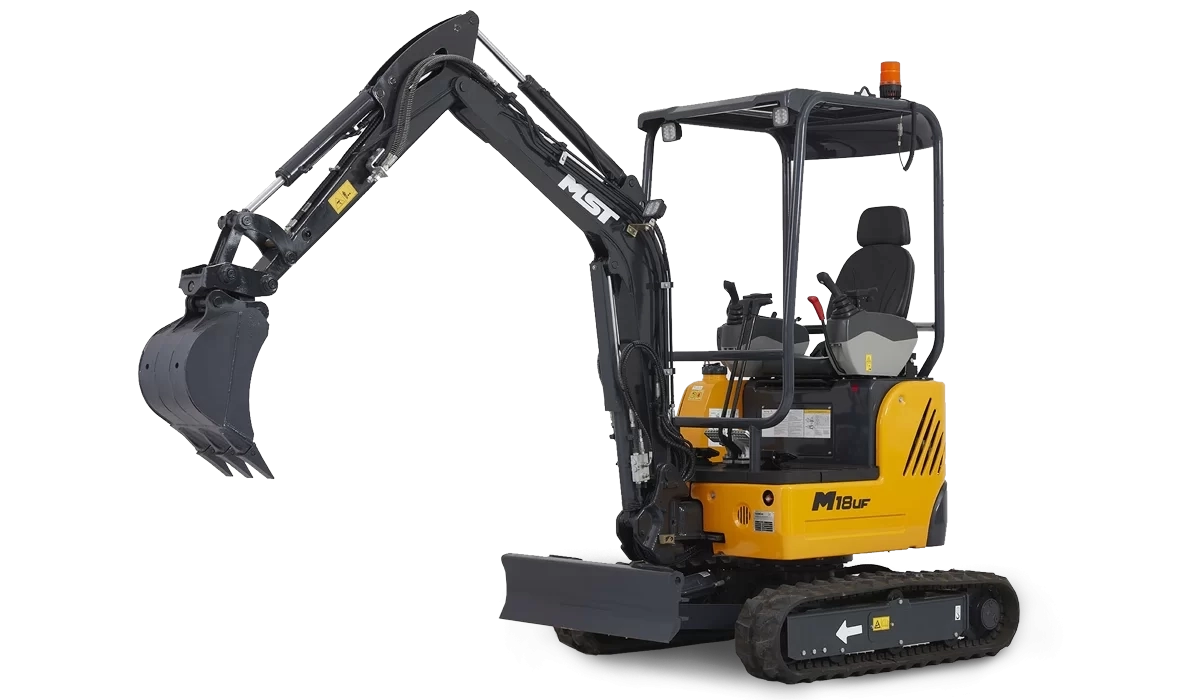

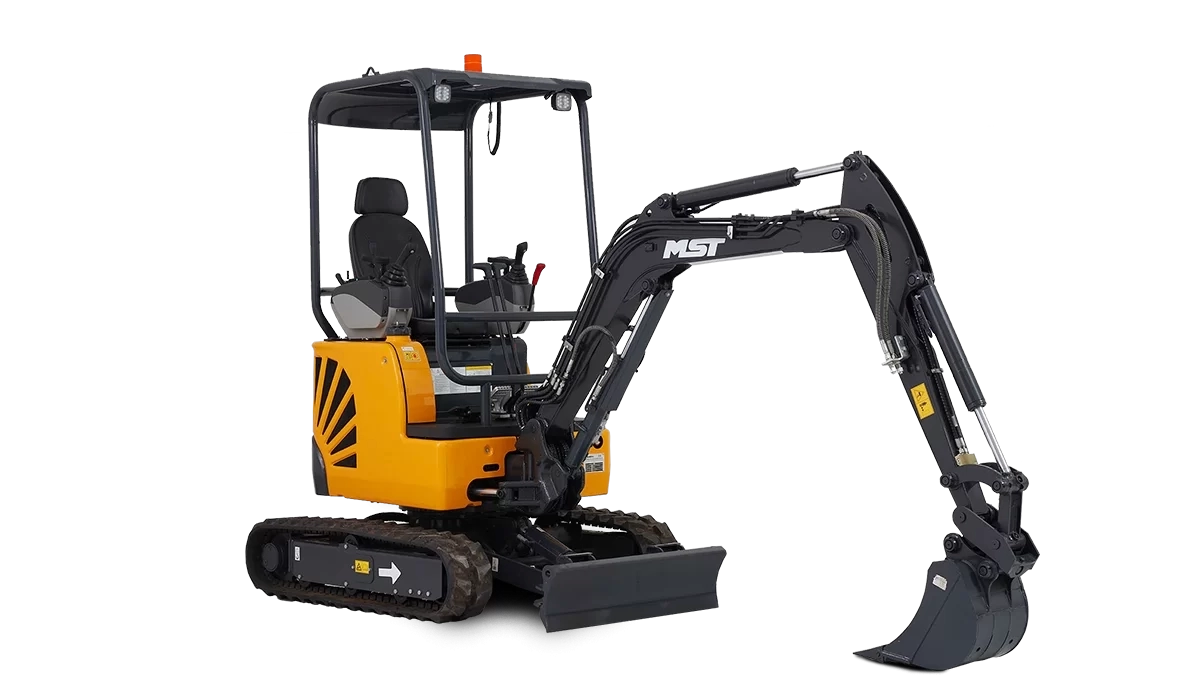

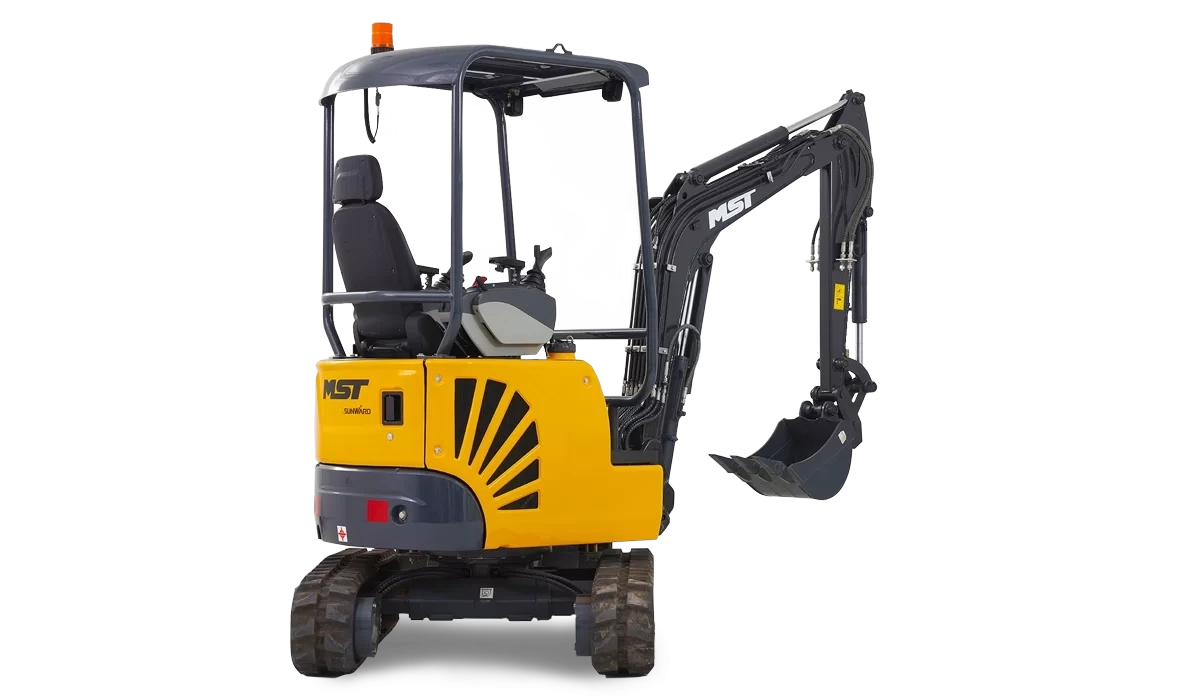

MST M18UF mini excavators have a modern design that provides precise and powerful control.
| ENGINE | |
| Brand | YANMAR |
| Model | 3TNV80F |
| Type | In-line, 3-cylinder, liquid-cooled, mechanical pump |
| Emission Class | EU Stage V / U.S. EPA Tier 4 Final |
| Cylinder Volume | 1.12 L |
| Maximum Power | 17.5 HP (13.4 kW) @ 2200 rpm |
| ATTACHMENTS | |
| Boom Length | 1.800 mm |
| Arm Length | 1.150 mm |
| Bucket Capacity | 0.04 m³ |
| Bucket Width | 380 mm |
| OPERATING WEIGHT | |
| 1.880 kg |
| GROUND PRESSURE | |
| 30.3 kPa |
| HYDRAULIC SYSTEM | |
| Main Pump | 1 variable displacement, axial piston pumps + 1 gear pump |
| Pump Capacity | 62 L/min |
| Maximum System Pressure | 240 Bar |
| BULLDOZER BLADE | |
| Width | 1.320 mm |
| Height | 267 mm |
| UNDERCARRIAGE | |
| Type | Rubber Track |
| Shoe Width | 230 mm |
| Number of Rollers | 3 |
| Carrier Roller | 1 |
| Gradeability | 30° |
| CANOPY | |
| FOPS | ✔ |
| TOPS | ✔ |
| Seat | Mechanical Suspension |
| Travel Alarm | ✔ |
| Led Lighting | ✔ |
| Seat Belt | ✔ |
| FEATURES | |
| Mechanical Quick Coupler | ✔ |
| Breaker Line | ✔ |
| Additional Hydraulic Line | ✔ |
| Hydraulic Pilot Control Joystick | ✔ |
| Foldable Track | ✔ |
| PERFORMANCE | |
| Bucket Digging Force | 22.7 kN |
| Arm Crowding Force | 11.2 kN |
| Travel Speed | 2.0 / 3.5 km/h |
| Swing Motor | Piston Motor |
| Swing Brake | Hydraulic Brake Type |
| Swing Speed | 10.0 rpm |
| CAPACITIES | |
| Fuel Tank | 24.6 L |
| Hydraulic Tank | 18.6 L |

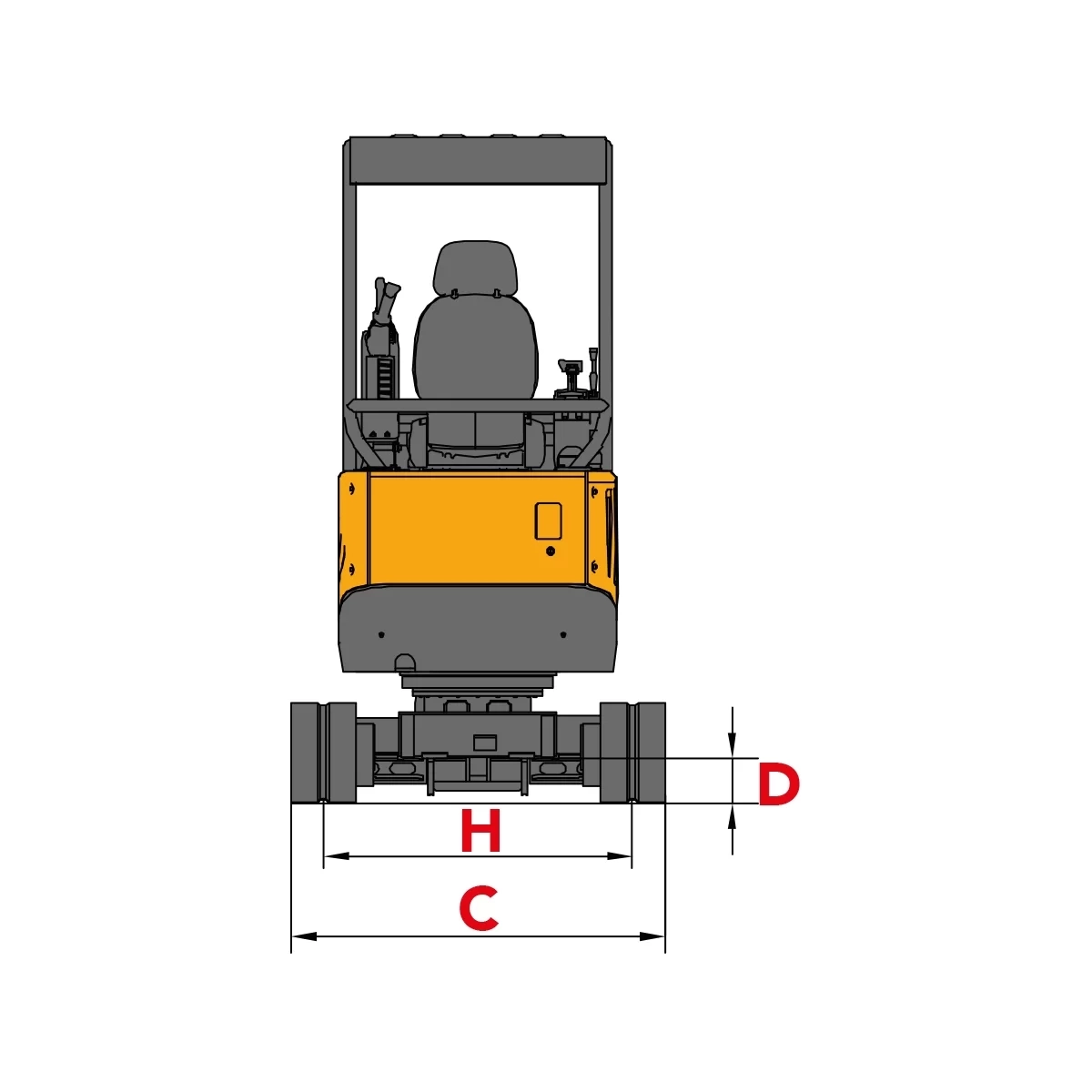

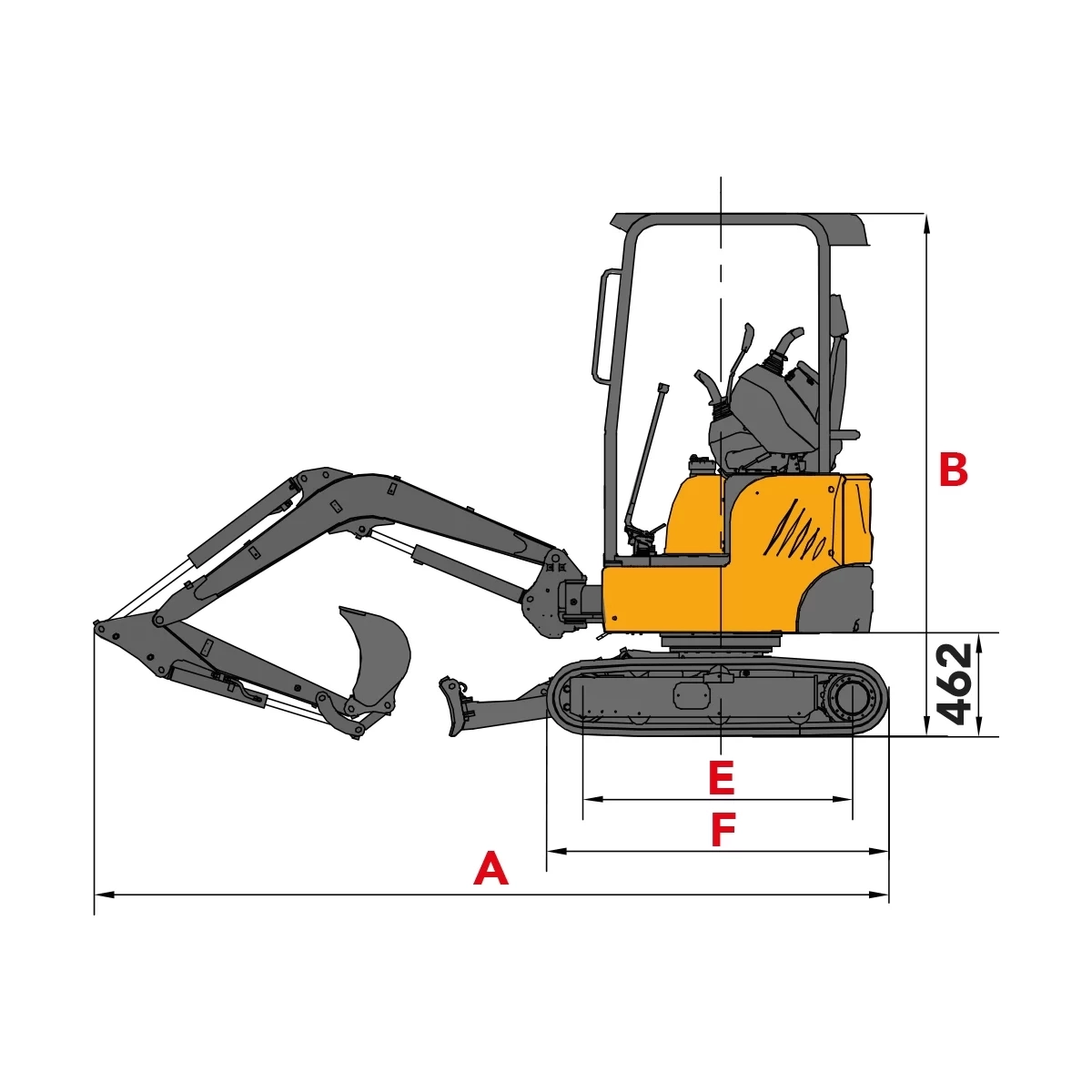

| GENERAL DIMENSIONS | |
| A-Transport Length | 3.582 mm |
| B-Transport Height | 2.350 mm |
| C-Transport Width | 990/1320 mm |
| D-Ground Clearance | 160 mm |
| E-Track Length on Ground | 1.210 mm |
| F-Track Length | 1.555 mm |
| G-Swing Radius Rear | 680mm |
| H-Track Roller Center Distance | 760/1.090 mm |
| I-Track Gauge | 990/1.320 mm |

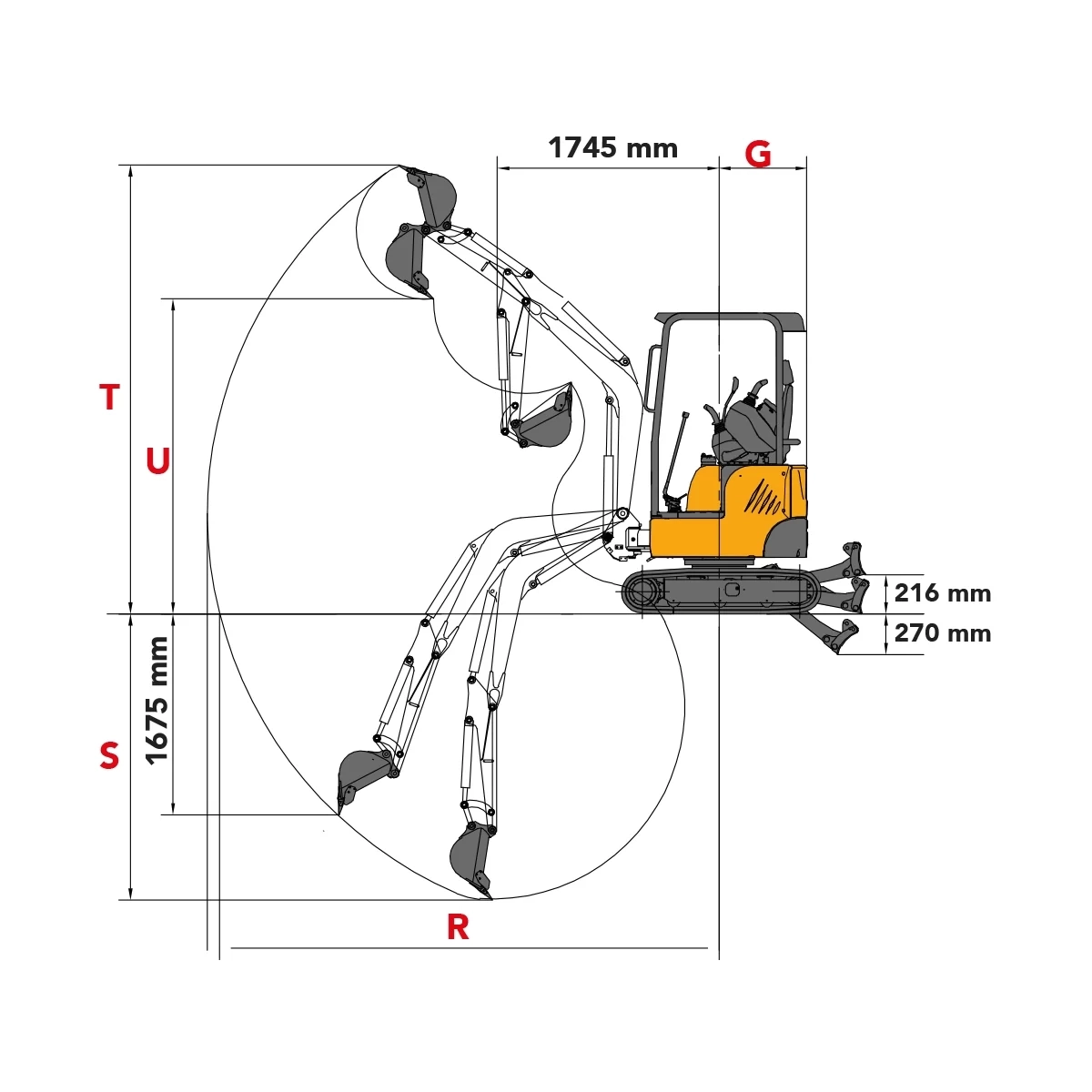

| WORKING DIMENSIONS | |
| R-Maximum Reach | 3.940 mm |
| S-Maximum Digging Depth | 2.210 mm |
| T-Maximum Reach Height | 3.458 mm |
| U-Maximum Loading Height | 2.430 mm |
| Boom Swing Angle (Right/Left) | 71° / 49° |
