Small, Compact and Powerful

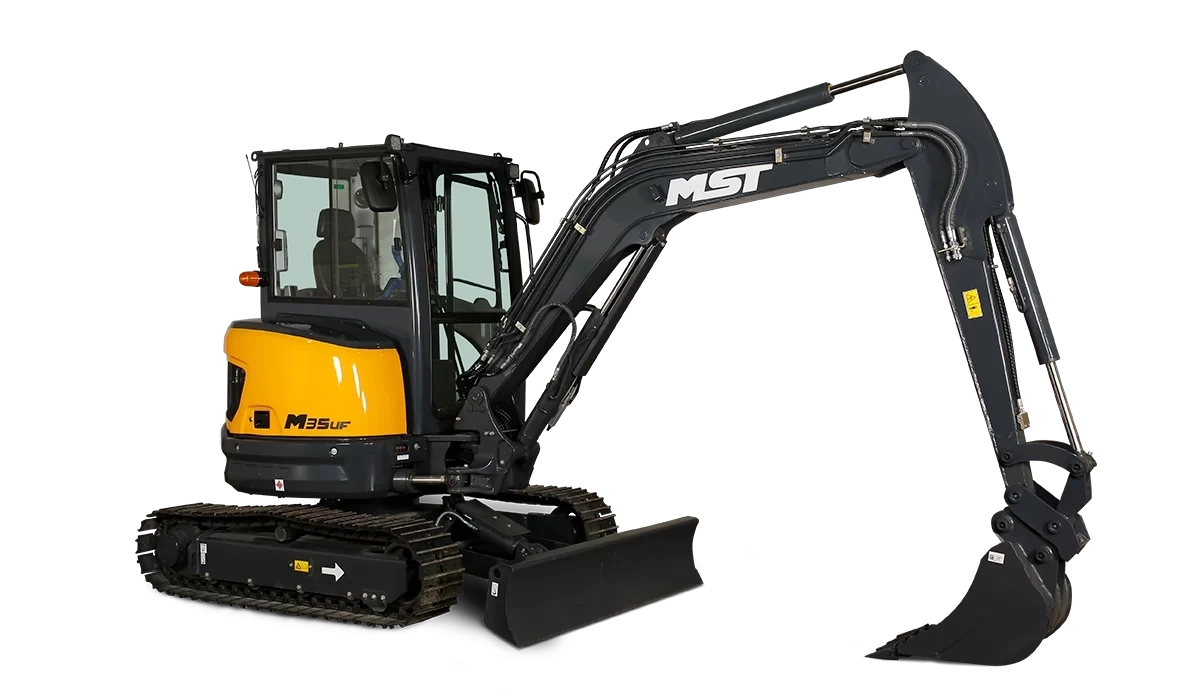

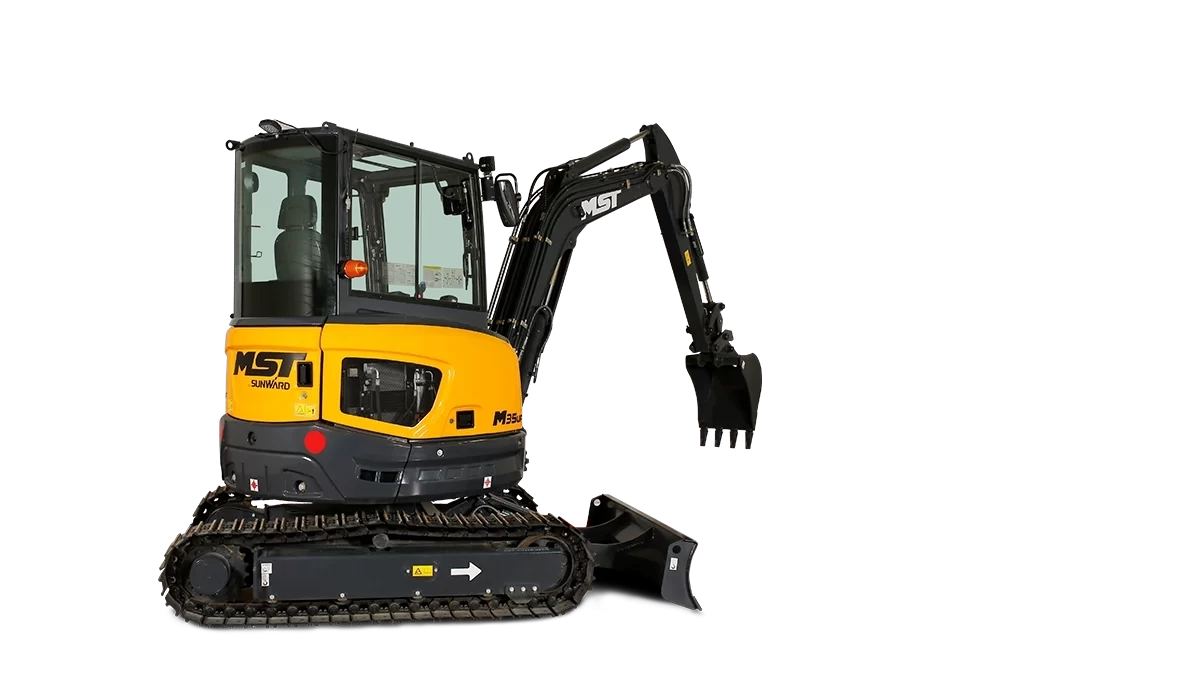

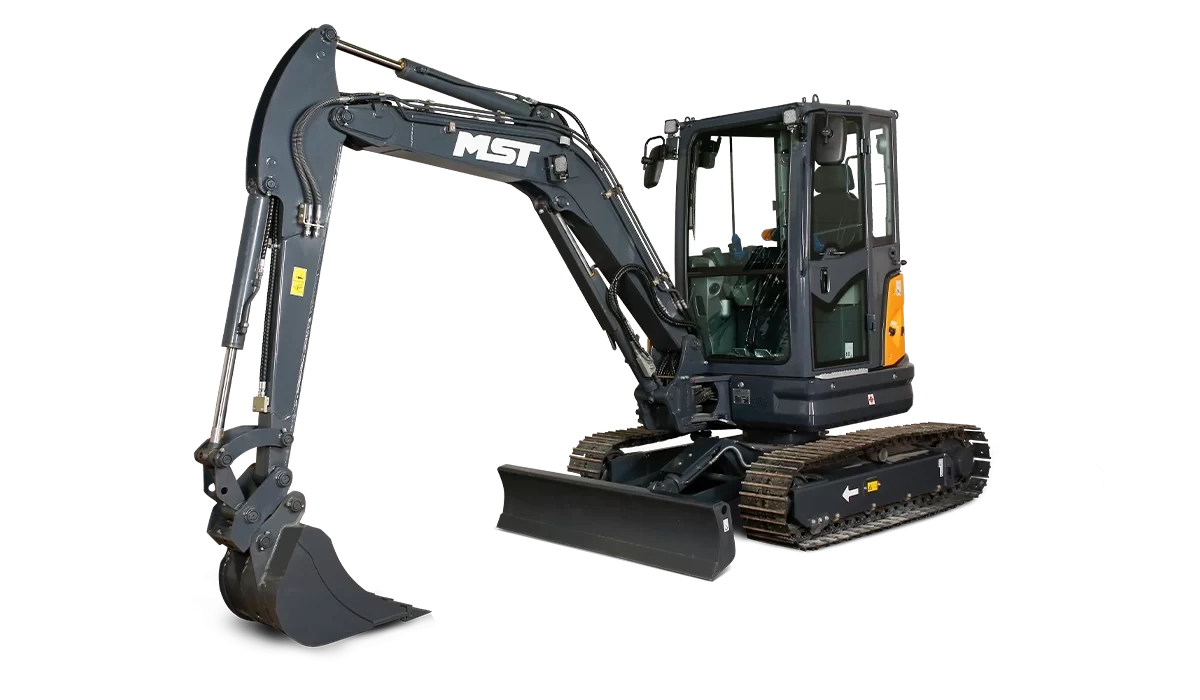

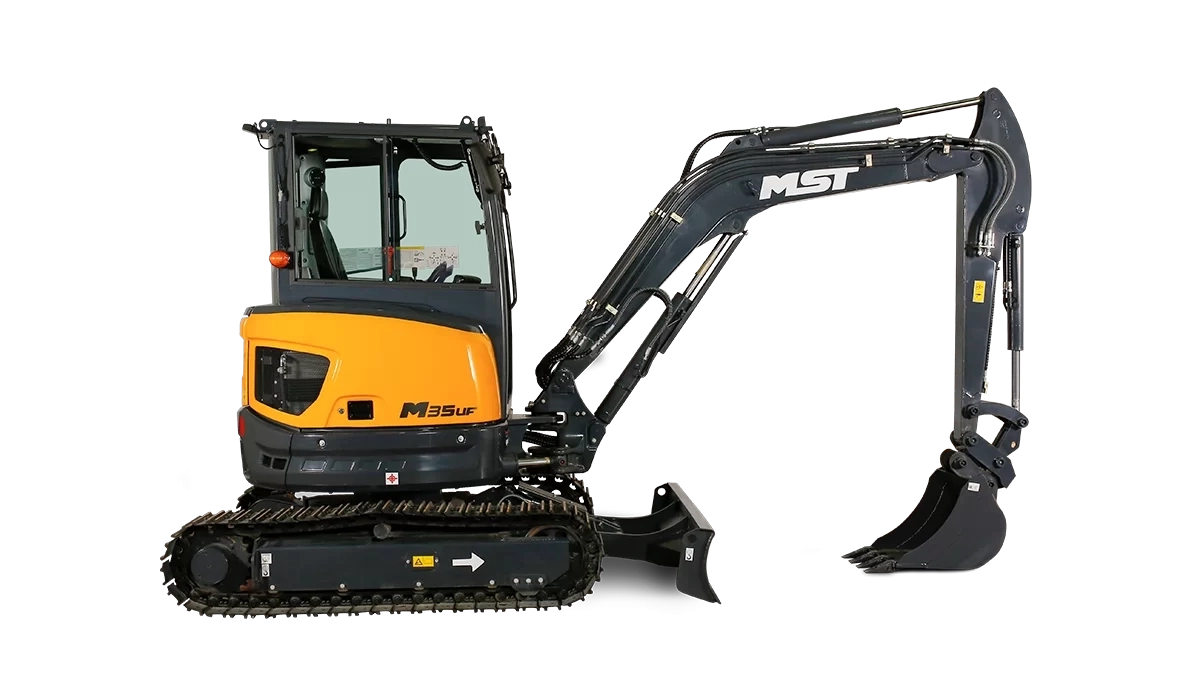

MST M35UF mini excavators are small, compact and powerful.
| ENGINE | |
| Brand | KUBOTA |
| Model | D1703-E4B |
| Type | In-line, 3 Cylinder, Liquid-cooled |
| Emission Class | EU Stage V / U.S. EPA Tier 4 Final |
| Displacement | 1.64 L |
| Maximum Power | 24.5 HP (18.2 kW) @ 2200 rpm |
| ATTACHMENTS | |
| Boom Length | 2.550 mm |
| Arm Length | 1.550 mm |
| Bucket Capacity | 0.11 m³ |
| Bucket Width | 520 mm |
| OPERATING WEIGHT | |
| 3.850 kg |
| GROUND PRESSURE | |
| 34.4 kPa |
| HYDRAULIC SYSTEM | |
| Main Pump | 1 variable displacement piston pump |
| Pump Capacity | 88 L/min |
| Maximum System Pressure | 245 bar |
| DOZER BLADE | |
| Width | 1.700 mm |
| Height | 366 mm |
| UNDERCARRIAGE | |
| Type | Rubber Track |
| Shoe Width | 300 mm |
| Number of Rollers | 5 |
| Carrier Roller | 1 |
| Gradeability | 30° |
| CABIN | |
| FOPS | ✔ |
| TOPS | ✔ |

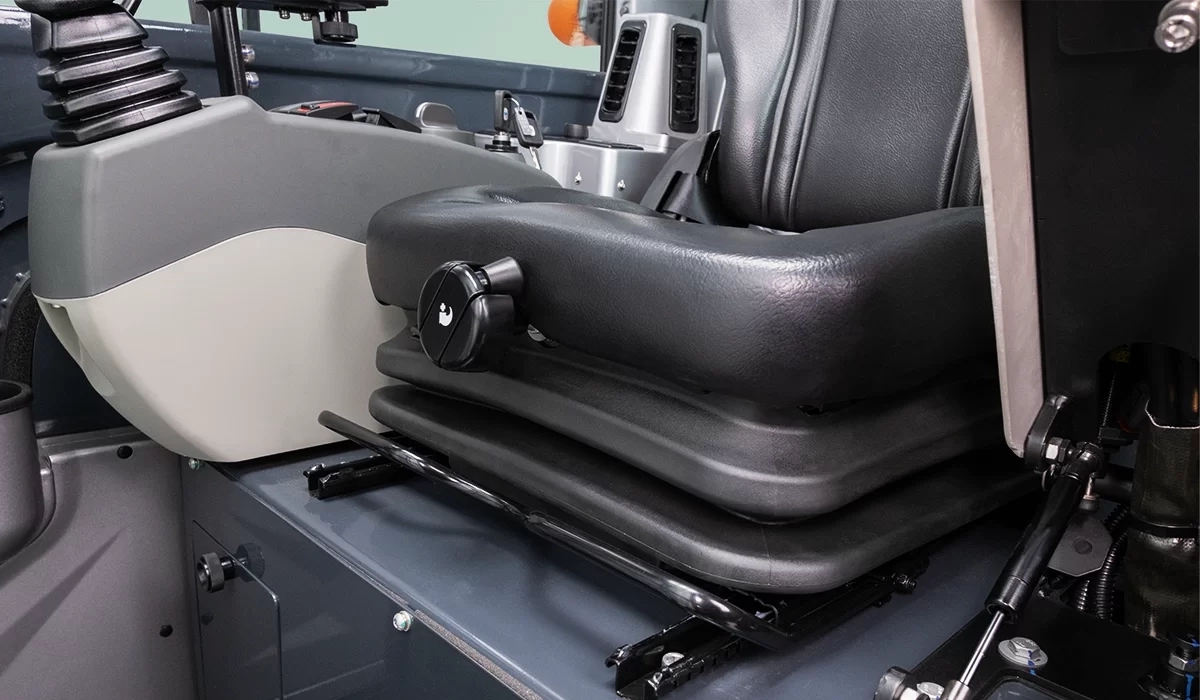

| Seat | Mechanical Suspension |

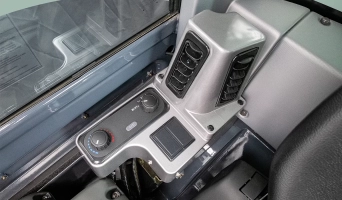

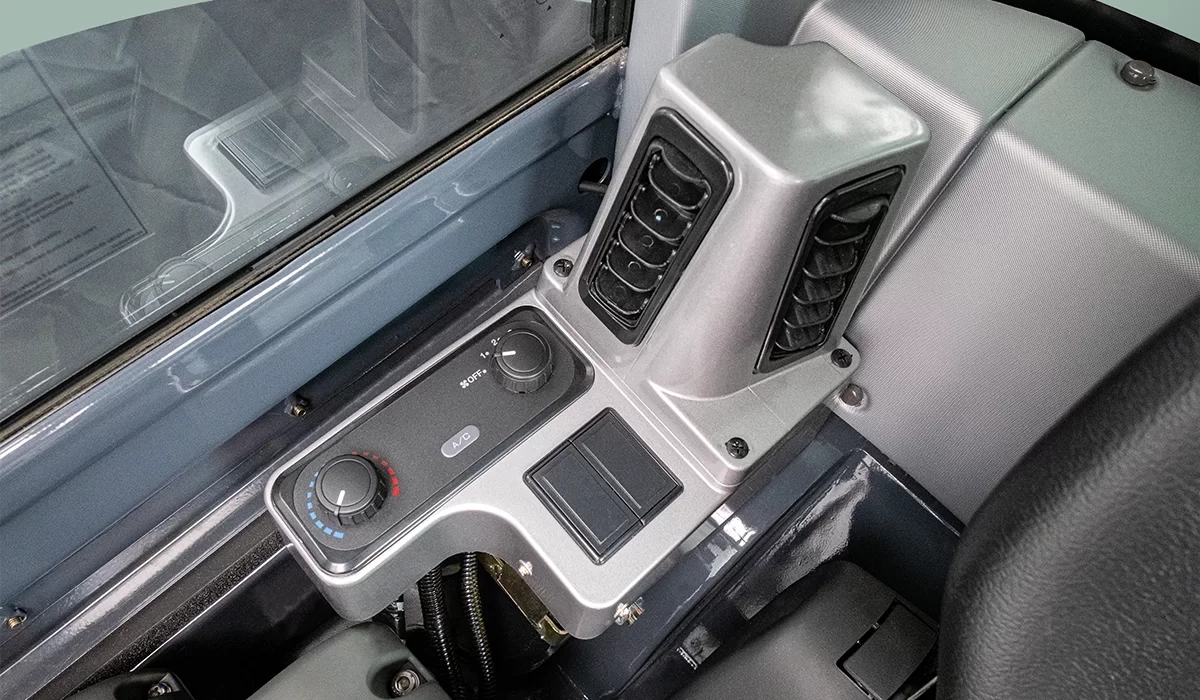

| Air Conditioning | ✔ |
| Travel Alarm | ✔ |
| Led Lighting | ✔ |
| Seat Belt | ✔ |

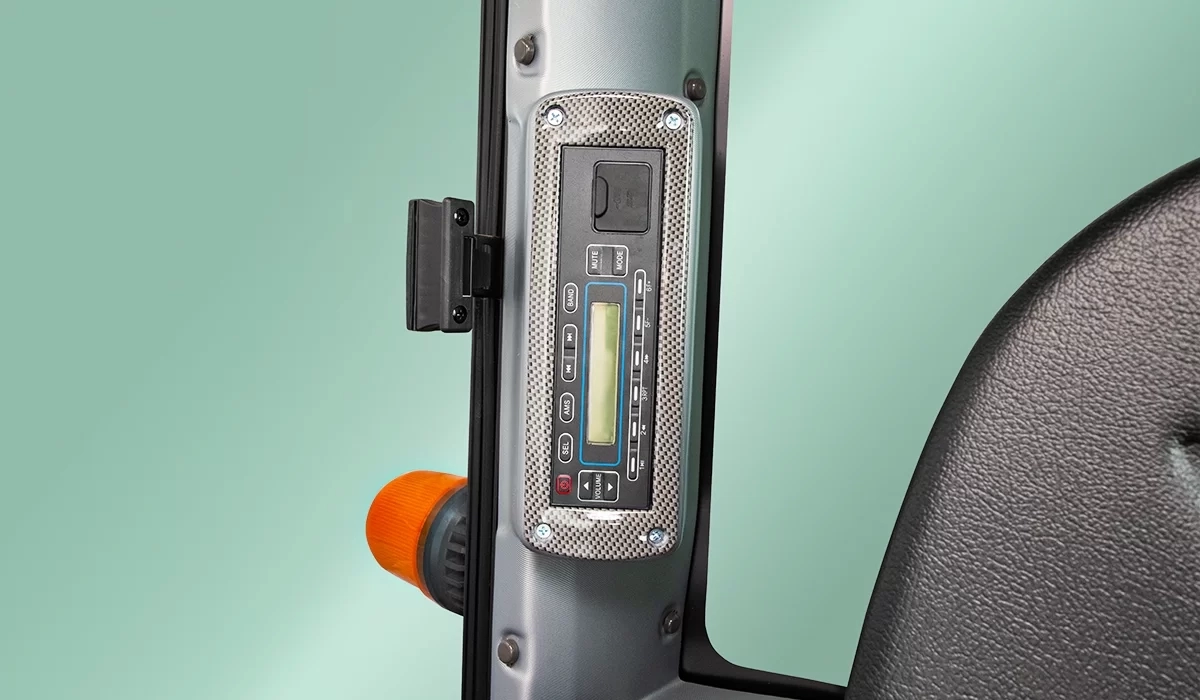

| Radio | ✔ |
| FEATURES | |
| Mechanical Quick Coupler | ✔ |
| Breaker Line | ✔ |
| Additional Hydraulic Line | ✔ |

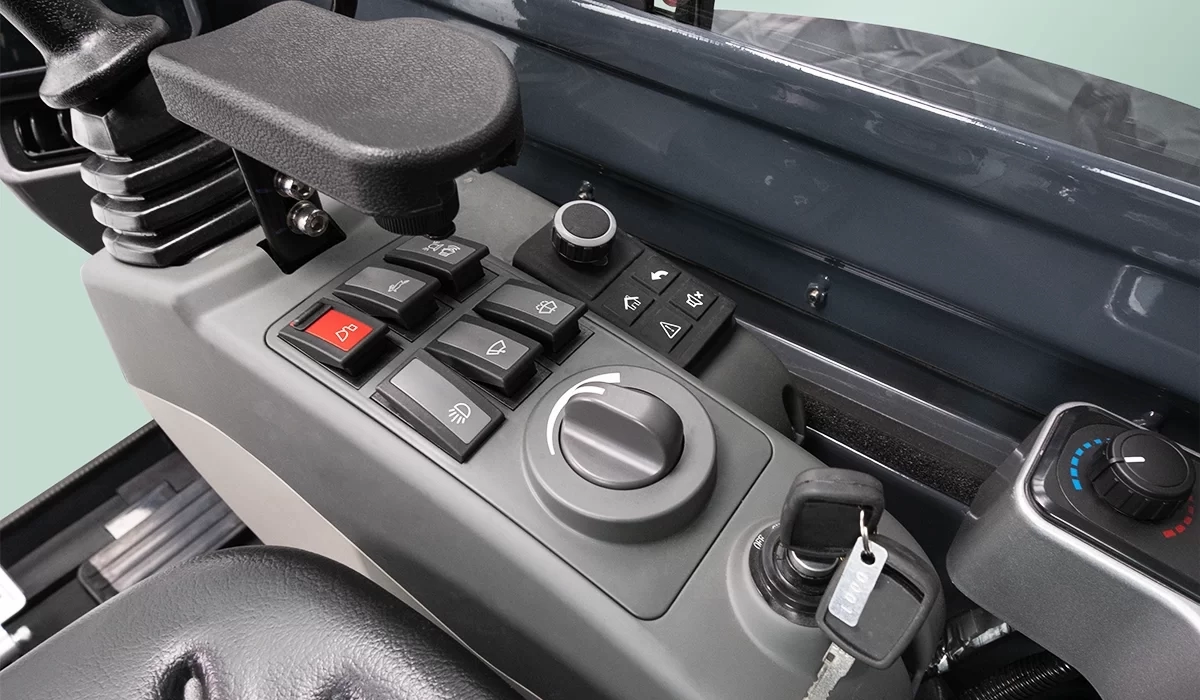

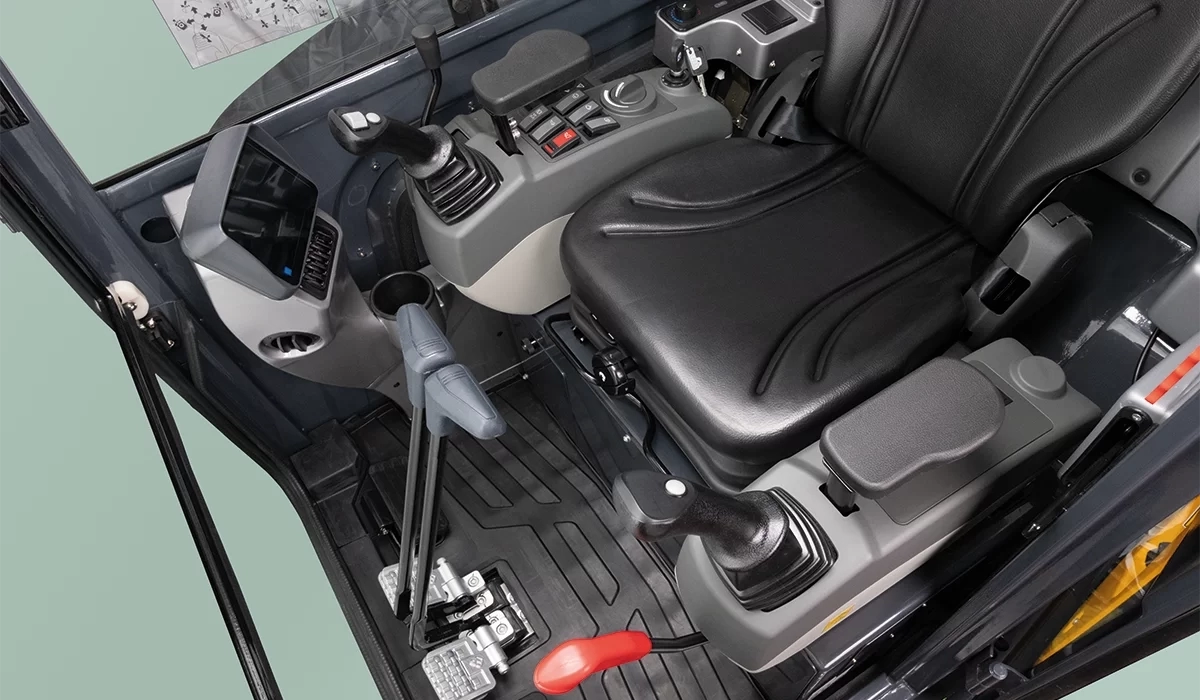

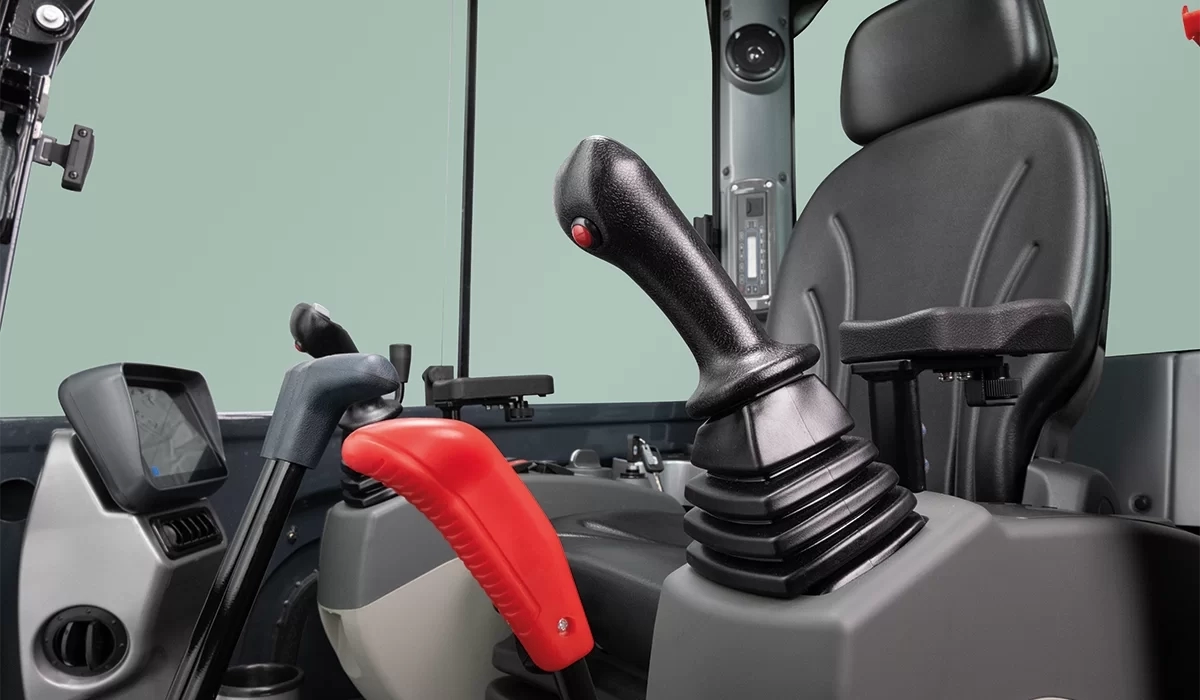

| Hydraulic Pilot Control Joystick | ✔ |
| Boom Safety Valve | ✔ |
| PERFORMANCE | |
| Bucket Digging Force | 31.8 kN |
| Arm Crowding Force | 22.5 kN |
| Travel Speed | 2.3 / 4.2 km/h |
| Swing Motor | Piston Motor |
| Swing Brake | Hydraulic Brake Type |
| Swing Speed | 9 rpm |
| CAPACITIES | |
| Fuel Tank | 40 L |
| Hydraulic Tank | 41 L |

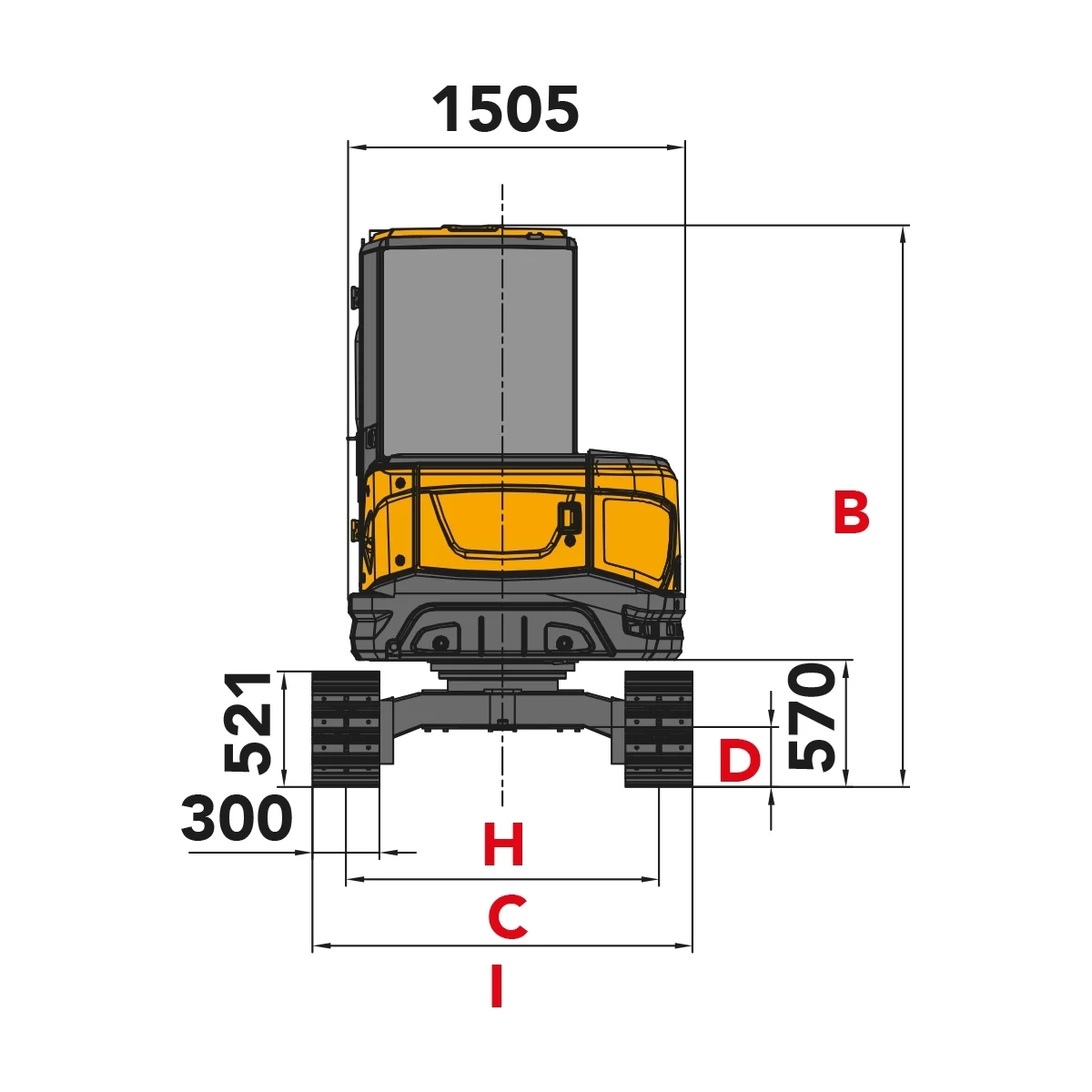

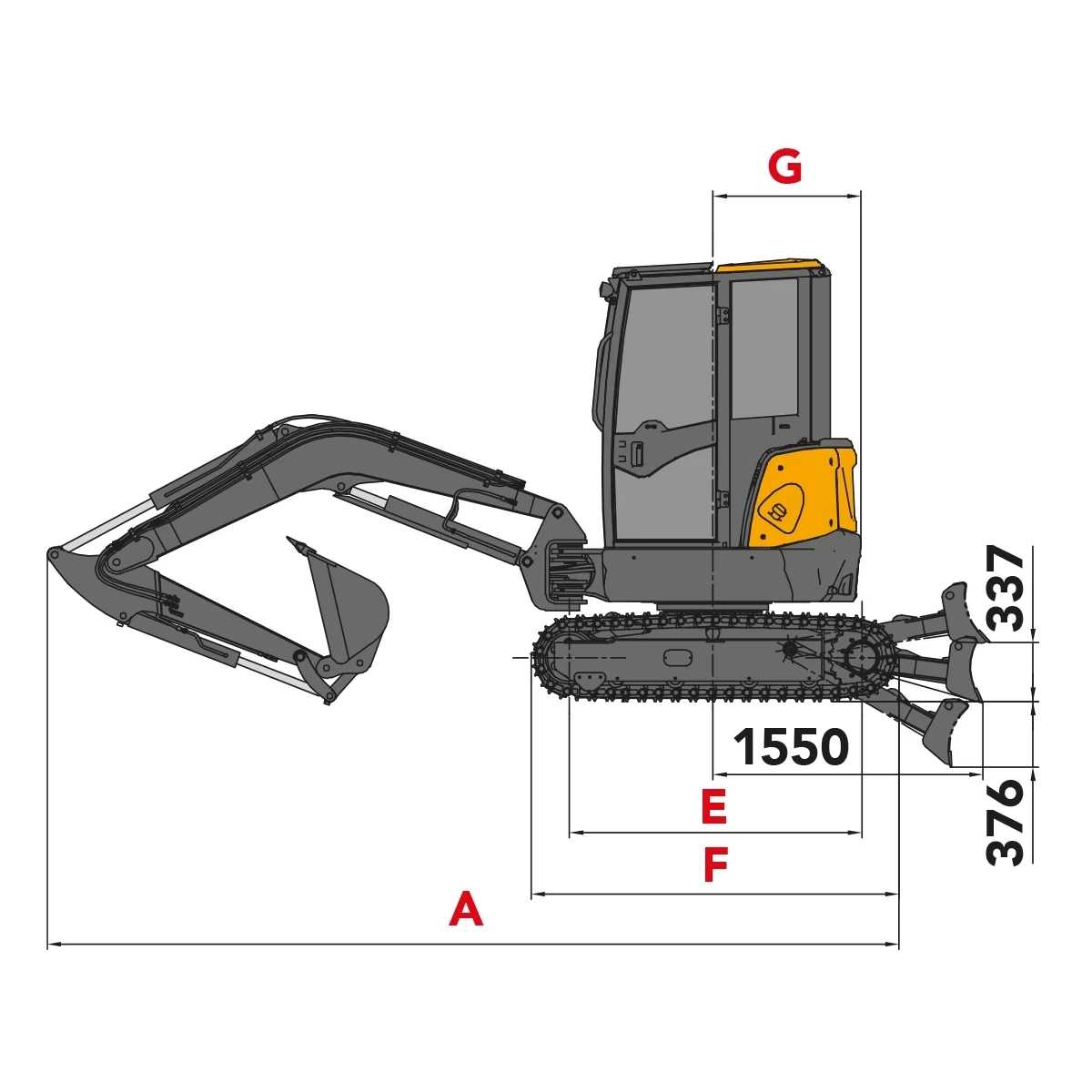

| GENERAL DIMENSIONS | |
| A-Transport Length | 4.890 mm |
| B-Transport Height | 2.555 mm |
| C-Transport Width | 1.700 mm |
| D-Ground Clearance | 270 mm |
| E-Track Length on Ground | 1.670 mm |
| F-Track Length | 2.163 mm |
| G-Turning Radius Rear | 850 mm |
| H-Track Width | 1.400 mm |
| I-Track Gauge | 1.700 mm |

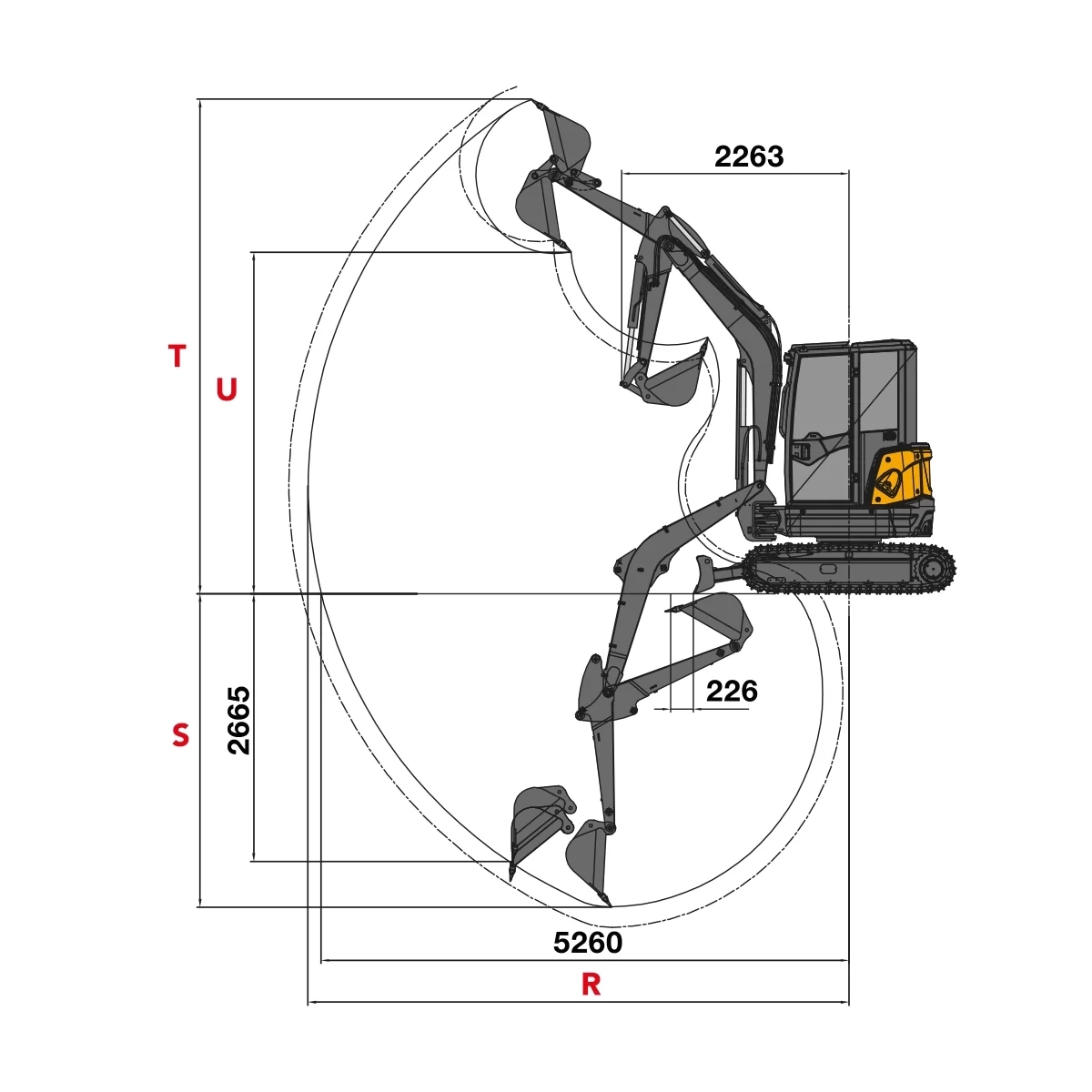

| WORKING DIMENSIONS | |
| R-Maximum Reach | 5.390 mm |
| S-Maximum Digging Depth | 3.120 mm |
| T-Maximum Reach Height | 4.925 mm |
| U-Maximum Loading Height | 3.400 mm |
| Boom Swing Angle (Right/Left) | 72° / 44° |
